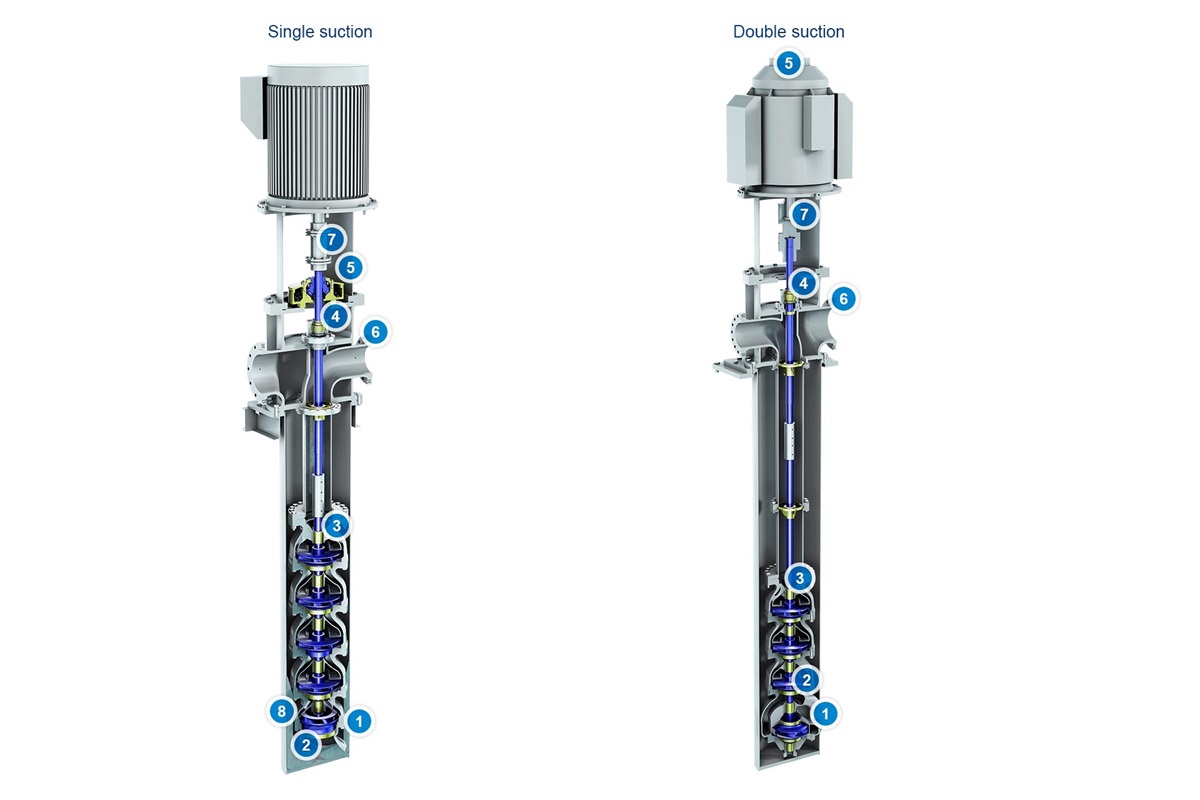

- Carbon graphite product lubricated bearing in bowls and columns for long maintenance-free periods
- Removable seal housing allows servicing of the throttle bushing without removing the head
- Separate fabricated driver stand allows the use of one suction and discharge head per pump size
- Spacer coupling allows servicing of the mechanical seal and thrust bearing as required
- Lateral and anti-rotational ribs provide uniform inlet velocity along the can length
SJD-CEP vertical multistage can condensate extraction pump
Fit-for-purpose condensate extraction pump
SJD-CEP vertical can condensate extraction pumps, are specified wherever limited NPSH is available, either due to system constraints or liquids operating near to their vapor pressure, typically for condensate extraction and heater drain pump applications. NPSH requirements of the pump are met by simply adjusting the length of the pump and can, with the advantage of minimized floor space usage.
The SJD-CEP pumps are vertically suspended, double-casing, bowl diffuser pumps specially designed for condensate extraction and heater drain pump in:

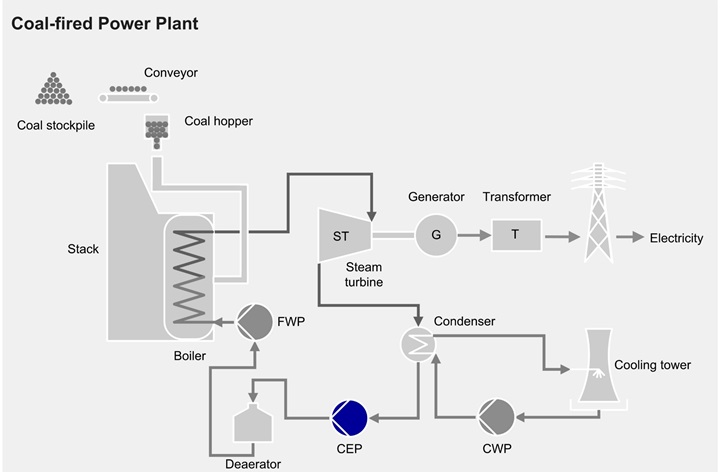

- Thermal power plants

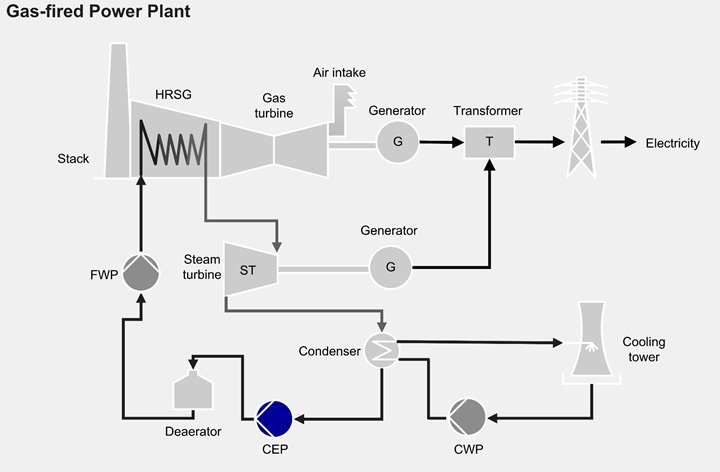

- Gas-fired combined-cycle power plants
- Nuclear power plants
- Industrial power plants

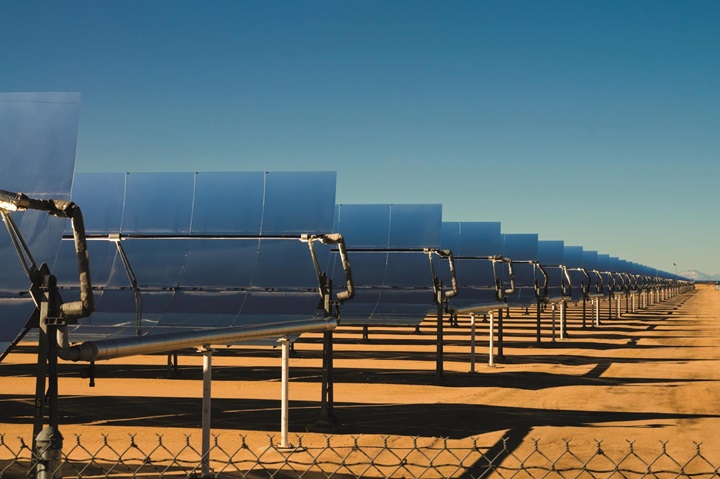

- Concentrated Solar Power (CSP) plants
Features and benefits
1. Single suction high Nss (suction specific speed) or double suction low Nss first stage
Reduced net positive suction head required (NPSHR)
2. Replaceable wear ring surface for impellers and bowls
Allows conservation of the running clearances
3. Carbon graphite product lubricated bearing in bowls and columns
Long maintenance-free periods
4. Shaft sealing by single or double mechanical seal with removable seal housing
Allows servicing throttle bushing without removing the head
5. Axial thrust bearing in pump or in motor
Adaptable to IEC or NEMA motors
6. Cast or fabricated suction and discharge head with separate fabricated driver stand
Allows using one suction and discharge head per pump size
7. Space coupling
Allows servicing the mechanical seal and thrust bearings as needed
8. Provided with lateral and anti-rotational ribs
Uniform inlet velocity along the can length

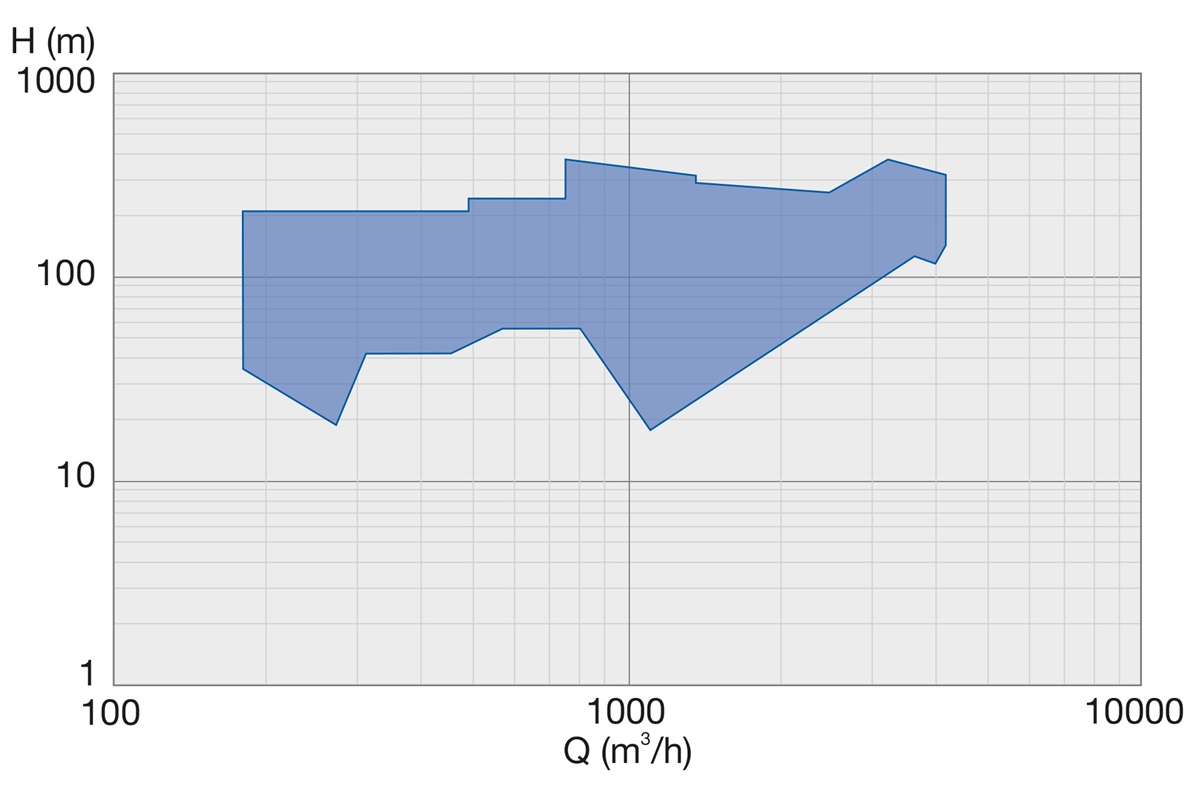

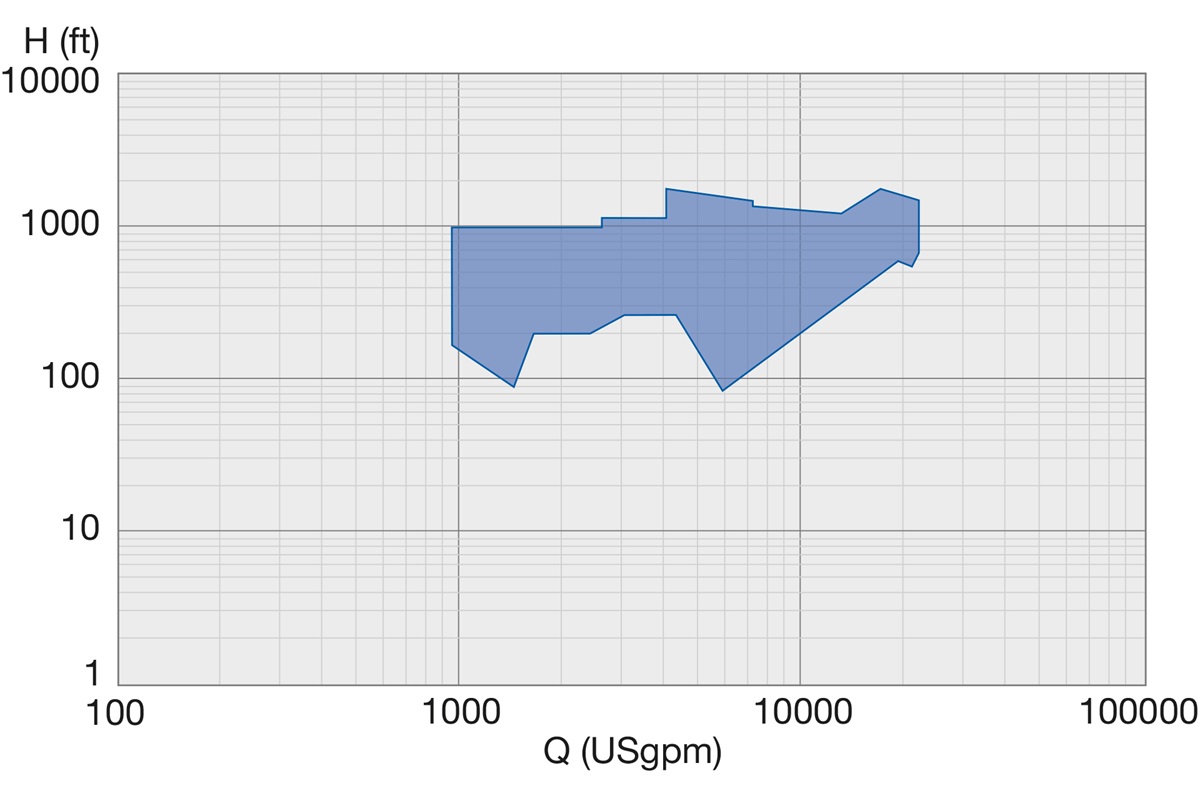

Operating data
50 Hz | 60 Hz | |
Bowl sizes | 315 to 1,484 mm | 15.4 to 63.1 in |
Capacities | 210 to 4,900 m3/h | 924 to 21,560 US gpm |
Heads | up to 400 m | up to 1,300 ft |
Pressures | up to 94 bar | up to 1,360 psi |
Temperatures | up to 100°C | up to 212°F |
Materials
Pump part | Material |
Bowl | Cast iron, carbon steel, chrome steel |
Impellers | Cast Iron, chrome steel |
Shaft | Chrome steel |
Can, column, discharge head | Carbon steel |
