BlueLinQ modulesThe range and number of plug-and-play input and output modules that can be connected, enables full control and monitoring of your pumping station
-
BlueLinQ Pro controllerDesigned for simple installation into new or existing infrastructure, the BlueLinQ Pro controller is the next generation monitoring and control solution.
-
CMS 24x monitoring and reportingAquaWeb is an advanced web based monitoring and surveillance system. The system is mainly aimed at pumping stations within wastewater collection networks and for flood protection but can also be used to monitor other rotating equipment as for instance air compressor. The basic version includes remote on-line monitoring with support for geographical map and an interface to stations.
-
Conductive level switch type ABS MD 131The MD 131 is a conductive level switch primarily used as an overflow switch in sewage pumping pits. The MD 131 can also be used in other applications where the conductivity of the medium is above 20 μS/cm.
-
Control panel type ABS CP 114The CP 114 is a compact control panel for single pumping stations. It is suitable for use in applications such as tanks, small pits, or standard commercial applications with a single-phase 1/230/N/PE power supply.
-
Control panel type ABS CP 116 and CP 216The CP 116 and CP 216 compact control panels for one or two pumps directly connect to pumps up to 5.5 KW (12A). The optional GSM/GPRS modem allows communication with AquaWeb or Supervisory Control and Data Acquisition (SCADA) systems using the Comli or Modbus protocols. Ex-versions are also available.
-
Control panels type ABS CP 112 and CP 212The CP 112 and CP 212 are compact control panels for one or two pumps. They directly connect to pumps up to 5.5 kW (12A), and feature three-phase and single-phase versions. Ex-versions are also available.
-
Equipment controller EC 531The EC 531 is an all-in-one solution for control and monitoring of pumping stations with one or two pumps. EC 531 is equipped with smart VFD control including PID and Best Efficiency Point (BEP).
-
Float switch type ABS KSThe KS float switch, used in liquids for control or signal activation, operates in response to the liquid level. It is also suitable for use in sewage and for automatic level control. The KS float switch is impact- and shock-resistant, mercury-free, and environmentally friendly.
-
GSM-4G Modem type CA 524The CA 524 is a 4G modem suitable for use with all type ABS controllers equipped with RS 232 modem communication. The modem kit comes complete with modem, dipole type T antenna, power cable and a DIN-rail socket. Diodes for indication of power and network status.
-
Leakage control type ABS CA 461CA 461 is designed to spy and detect leakage in pumps and mixers. The amplifier is housed in a norm enclosure fitted for DIN-rail mounting. The unit is available in two executions, 24 VDC or 110-230 VAC supply.
-
Lifting station type ABS Synconta 700 and 700LThe Synconta is a prefabricated polyethelyne sump designed as a single pumping station for the effective dewatering of buildings and areas below the sewer level.
-

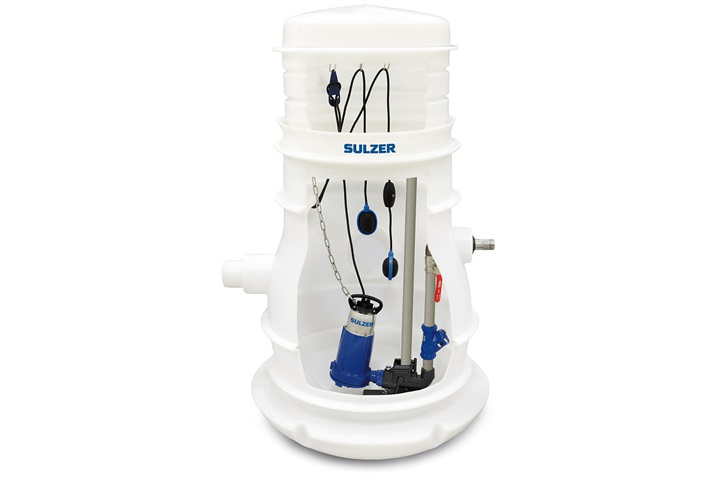

Lifting station type ABS Synconta 801The Synconta 801 is a single pump station, with a fixed pedestal and guiderail for simple pump installation and maintenance. It is ideal for automatic pumping of wastewater and sewage from locations where gravity discharge into the sewer is not possible.
-
Lifting station type ABS Synconta 901B and 902BThe Synconta 901B and 902B is a single or double pumping station, ideal for automatic pumping of wastewater and sewage from locations and areas below the backwash level.
-
Muffin Monster™ inline/open channel grindersThe Muffin Monster™ sewage grinders are designed to protect pumps and other equipment by grinding down the toughest wastewater solids.
-
Pressure sensor type ABS MD 124The MD 124 is a 4-20 mA loop-powered pressure sensor. It has a robust construction and is easily mounted on a standard 35 mm DIN rail. MD 124 is ideal for measuring liquid levels using the ”bubble tube” principle.
-
Pump controller type ABS PC 111The PC 111 is a single-pump controller designed mainly for use in either gravitation or pressurized municipal wastewater pumping stations. Its many simple-to-use features improve pumping station functionality and reliability throughout its life-cycle.
-
Pump controller type ABS PC 211The PC 211 is an easy-to-use dual-pump controller designed mainly for use in either gravitation or pressurized municipal wastewater pumping stations. Its numerous features improve pumping station functionality and reliability throughout its life-cycle.
-
Submersible pressure sensor type ABS MD 126The MD 126 is a high-accuracy submersible hydrostatic level sensor. Encapsulated in stainless steel and resistant to sewage water, it is designed to measure levels in liquids such as storm water and wastewater in sump pumps.
-
Submersible pressure sensor type ABS MD 127MD 127 is a sewage water resistant, stainless steel encapsulated, submersible, hydrostatic level sensor of very high accuracy and over pressure capability. It is designed for level measurement in liquids like stormwater and wastewater in pump sumps. When connecting the 2-wire loop powered sensor in series with a DC power supply, the MD 127 gives a 4 to 20 mA output signal which is proportional to the level of the liquid.
-
Submersible sewage pump type ABS XFPSubmersible sewage pumps type ABS XFP are the best choice for ensuring efficient and reliable pumping in any wastewater pumping station. The submersible wastewater pumps, mainly installed in network pumping stations, are equipped with Premium Efficiency IE3 motors as standard and with the ContraBlock family of impellers.
-
Temperature and leakage relay type ABS CA 462CA 462 is designed to spy and detect temperature and leakage in pumps and mixers. The amplifier is housed in a norm enclosure fitted for DIN-rail mounting. The unit is available in two executions, 24 VDC or 110-230 VAC supply.
Network pumping station
Boost your pumping station network
Network pumping stations collect municipal wastewater from residential homes and communal schemes. Installed in dry or wet wells, the pumps deliver the effluent to a terminal pumping station. Since most pumping stations are not equipped with screens, the pumps must cope with difficult materials such as fibrous sanitary and packaging items.
Sulzer’s application knowledge extends from pumping station design to ongoing optimization. By combining large solids passage with excellent rag handling, Sulzer pumps ensure blockage-free sewage pumping with the lowest lifecycle cost. Sulzer’s easy-to-use pump controllers and monitoring equipment further safeguard and improve station operation.
