Although the operating principle of a gas turbine is relatively simple, the components involved in producing the energy are highly specialized and operate within very fine tolerances. The original equipment manufacturers (OEMs) provide a complete set of baseline performance data that can be compared to the information collected during each maintenance inspection. Variables such as vibration, pressures, temperatures and output are collated and analyzed to produce a serviceability report.

Anomalies in the collected data can be assessed and prioritized to ensure that issues can be addressed before they cause significant damage. In this way the availability of the asset is maximized and repairs are completed during scheduled shut-down periods. These also present an opportunity for the operator to install upgrades and improvements that will ensure continued reliability and maintain or even improve performance; all of which can be managed and installed by expert engineers from Sulzer.

High temperature components

Gas turbine components are subjected to high temperatures, as well as high stress levels and are exposed to corrosive combustion gases at the same time. Gas turbines have to be fired to highest permissible temperatures to get the best efficiency and the highest output. Fighting degradation of components exposed to high temperature is a continuous challenge.

Many gas turbine hot-section components have a limited lifetime. Oxidation, corrosion, material degradation, and thermal cracking are the usual lifetime determining processes. A limited lifetime can be caused by the deterioration of only one detail of a component. A thorough analysis and understanding of the mechanism can lead to accurate pinpointing of that detail and to ways to improve the lifetime of the component. Improvements can be made on existing service-exposed components as well as in new designs.

Thermal imaging

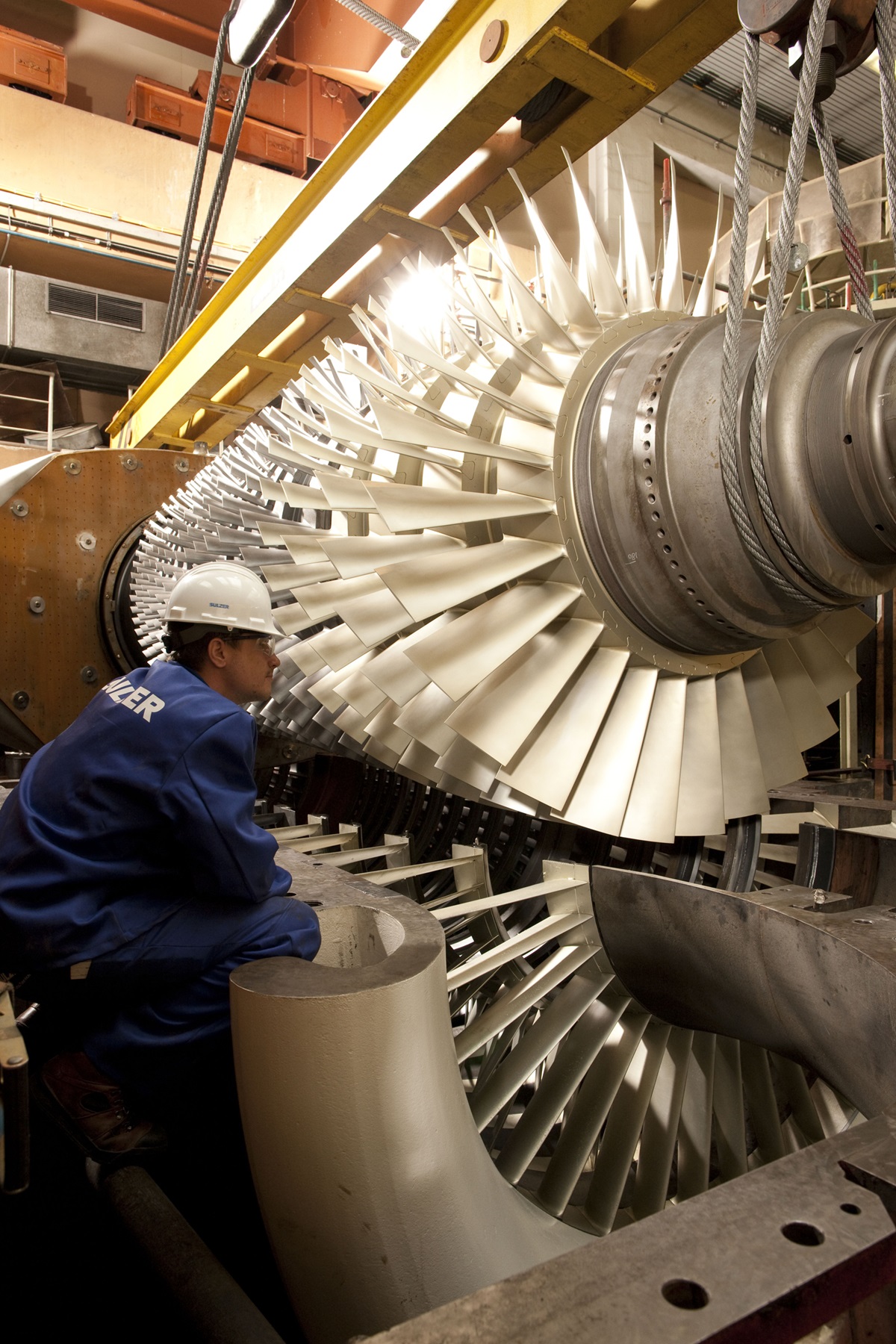

Inspections of the hot turbine sections are essential and close examination of the individual turbine blades can reveal issues with overheating. Initial inspections by an experienced service engineer using a borescope can reveal more obvious defects but sometimes a more detailed inspection will be required.

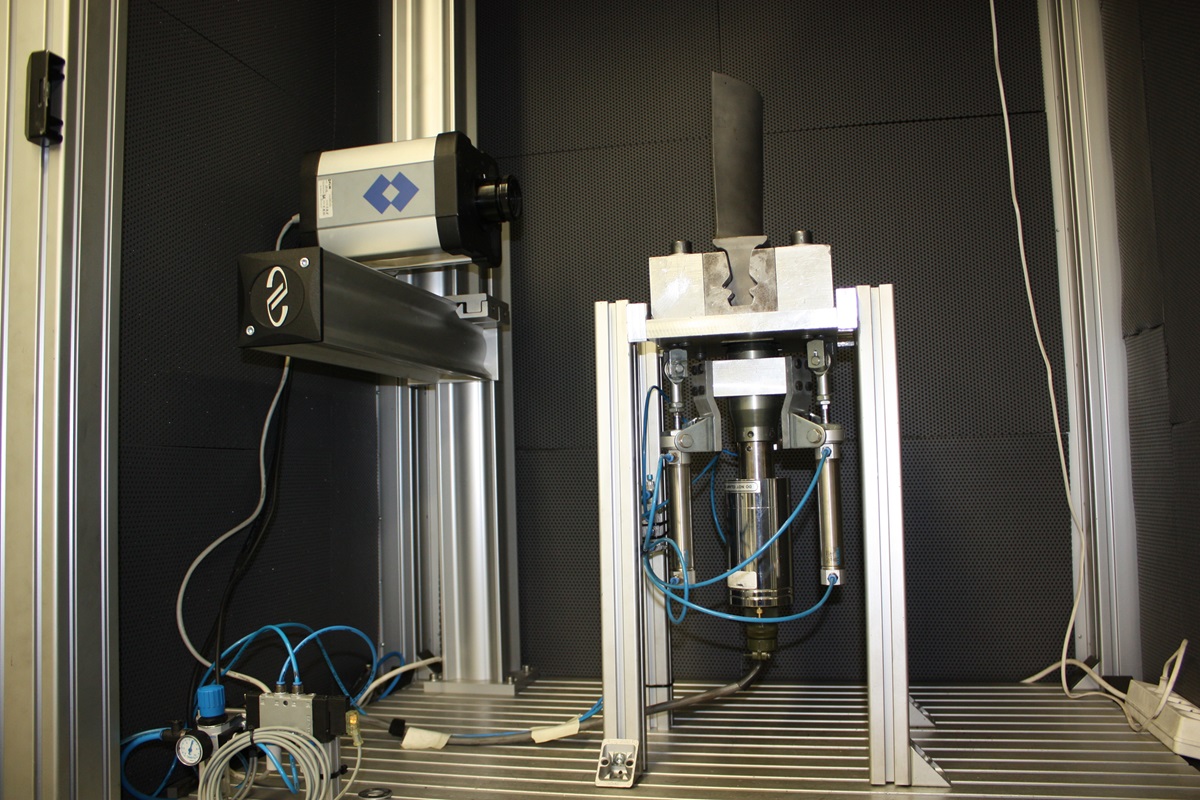

The use of thermographic equipment to detect heat build-up in bearings and electrical connections uses a passive approach which relies on the thermal radiation of the object being examined. However, an active, lock-in thermography uses ultrasonic excitation to introduce energy into the object, such as a turbine blade, and measures its response. If the normally homogeneous material is damaged, some of the wave energy is absorbed and heat is generated, which can be detected by the thermal imaging camera. This can be executed during a component refurbishment cycle.

For turbine components, cooling is very important to extend and protect component life. During the repair of vanes or blades with cooling channels, it must be ensured that all the cooling holes are open. An infrared camera can show at a glance whether cooling holes are blocked or open and images can be recorded as part of the final repair report.

Repair technology

The sophisticated designs of the advanced technology components used in the hot sector of third generation gas turbines have presented significant challenges to the aftermarket repair sector. Many of the standard repair processes could not be applied to such complex designs. New welding techniques, coating materials, inspection procedures and tooling are necessary to restore components to a safe and serviceable condition.

The combustion section includes components such as fuel nozzles, cowl caps, combustion liners, transition pieces and flow sleeves. These require specialist dimensional and non-destructive inspections to be completed before an advanced weld repair method is used to restore the component to its correct dimensions. This can involve parent metal bonding to restore wall thicknesses and repair minor cracks.

For the rotating components within the hot section, the advances made in laser welding have allowed many blades, which would have otherwise been scrapped, to be saved and returned to service. Laser welding allows rebuilding of fine details with limited excess material. At the same time, stronger and harder weld filler alloys can be used for demanding applications.

Coatings to withstand high temperatures

Thermal barrier coatings (TBC) can be applied to components to help them withstand the high operating temperatures of the gas turbine. They can be applied to combustion liners, transition pieces and also blades and vanes. More advanced, extreme temperature resistant TBCs have been developed for application on first-stage advanced technology turbine buckets.

The search for increased power output using higher turbine inlet temperatures over 1300 °C has led to the application of single-crystal (SX) materials for turbine blading. Without a suitable repair procedure, SX blades must be replaced at every major overhaul after approximately 24,000 operating hours. Based on the investigations and the advanced repair techniques developed by Sulzer, SX blades can be refurbished to an "as-new" condition. With the high-end repair technology and the know-how of Sulzer, users of SX blades can give a second life to these components and thereby achieve substantial savings.

Higher operating temperatures and mechanical stresses are creating the need for the use of advanced technology components and refurbishment processes. In general, refurbishment activities consist of the stripping and reapplication of the coating, the rebuilding of the geometry by welding, and the rejuvenation of the material condition through appropriate heat treatments. Advanced refurbishment procedures also include changes in materials, coatings, or designs, which should reduce the risks of failure or the reoccurrence of damage.

Sulzer offers many similar types of advanced component refurbishment solutions, thus demonstrating that a combination of expertise in material science, skilled workmanship, and highly developed in-house processes are prerequisites for the reliable and cost-effective extension of the life of a component. Repairs that improve the machine create significant added value and reduce the cost of ownership for the owners and operators of gas turbines, steam turbines, and compressors.
