Clean water pump SMD for potable and treated water
Clean water pump with drinking water certificates
The SMD water pumps are available as standard and configured pumps to meet the demands of different water applications. With a best-in-class hydraulic design, the SMD pumps can take on challenges in raw, clean, sea and brackish water applications. The clean water pumps have ACS and NSF 61/372 drinking water certifications.
Cooling fan in thrust bearing for heavy duty applications such as high speed, high ambient temperature, provides effective cooling without need of cooling water
Connection for temperature and vibration monitoring instruments
Seal flush from pump discharge through orifice. Default single seal flush plan.
Plan 31 as optional:
Seal flush from pump discharge through cyclone separator. Centrifuged solids are returned to pump suction
Plan 32 as optional:
Seal flush from an external clean source
Double suction impeller
With inherent hydraulic balance of axial thrust
Exceptional efficiency over a wide range of flows
Excellent Net Positive Suction Head Required (NPSHR) also in flow run out conditions

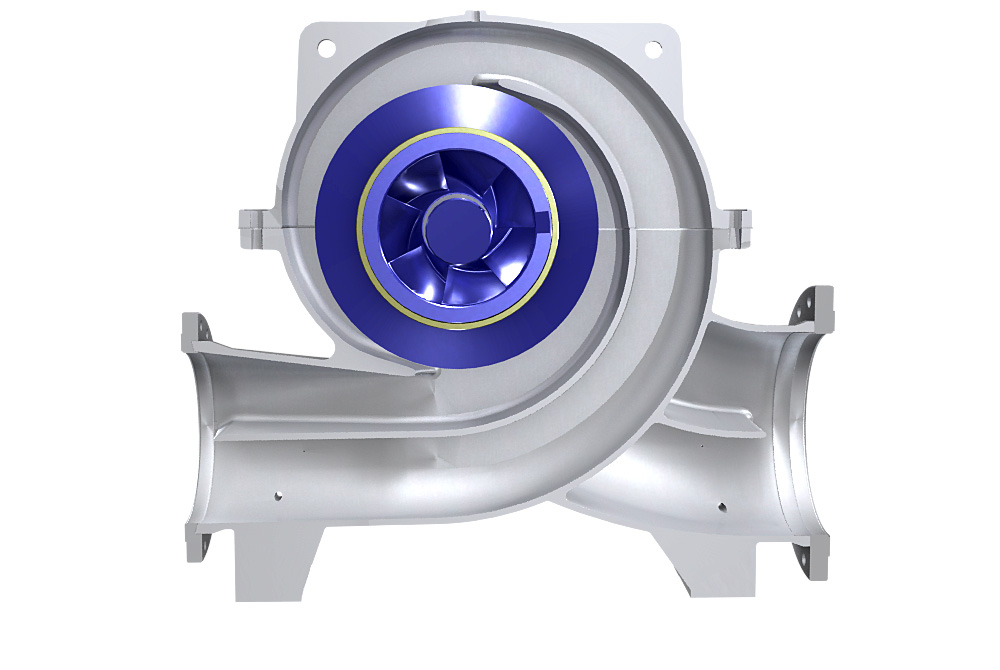

Double volute casing
Radial load balancing
Innovative cut-water design for minimum radial load
Self-draining
Compact dimensions for reduced bearing span

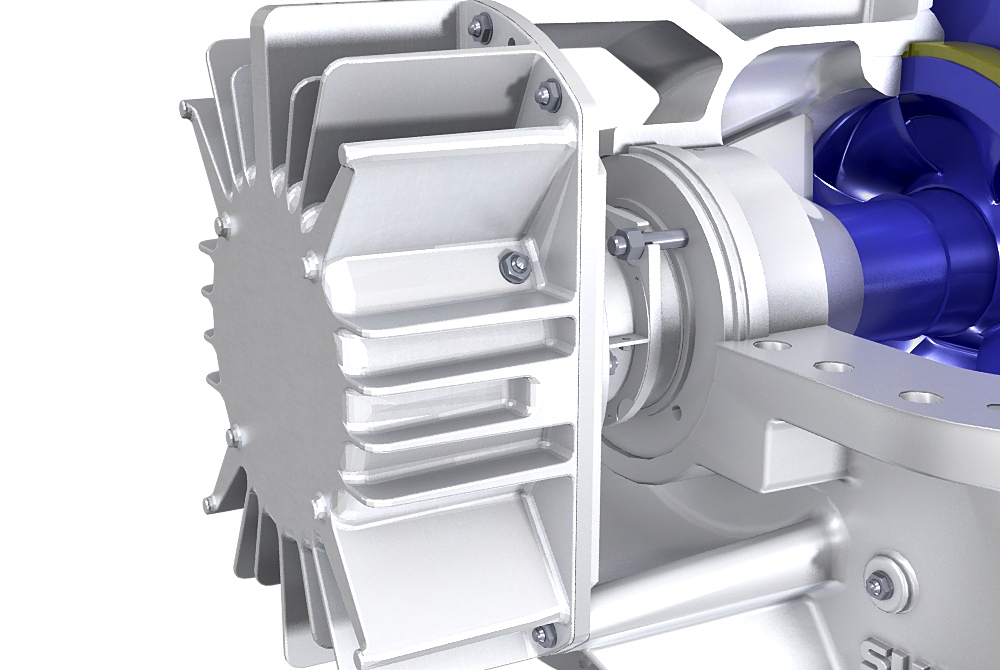

360° bearing bracket
360º fixation for enhanced stiffness
Standard SMD
Greased for life, deep groove single ball bearings at both drive and non-drive ends
Configured SMD
Heavy duty bearing design
Generously sized for life cycle higher than 100,000 hours, grease or oil lubricated bearings available
With angular contact, double ball bearing at drive end and single radial ball bearing at the non-drive end
For higher power requirements, typically in large water transport applications

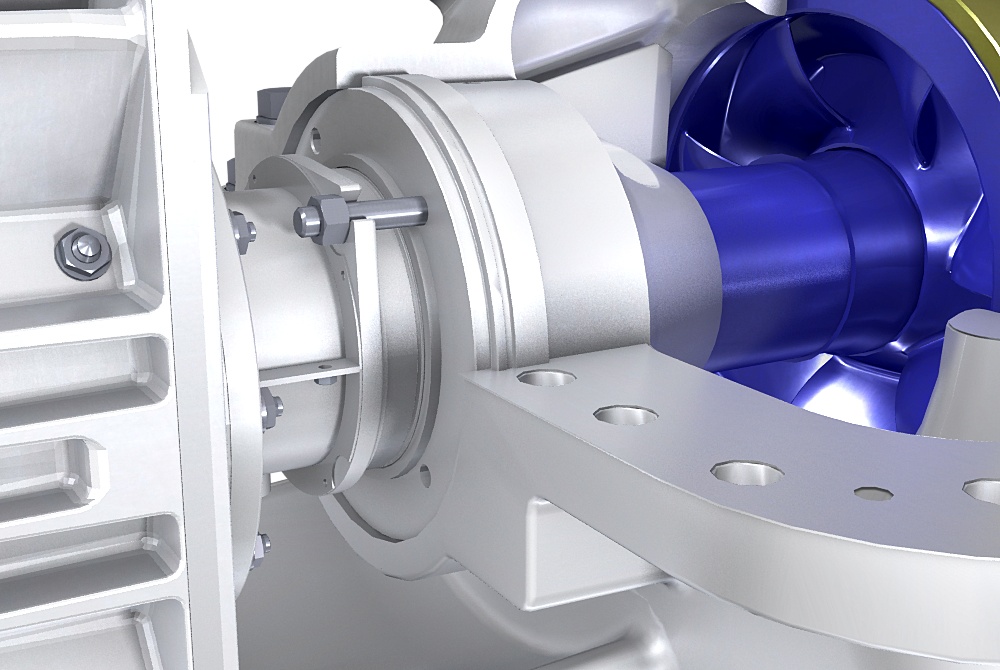

Easy maintenance
Full dry-shaft design
Single, balanced mechanical seal as standard shaft sealing
Dowel pins for alignment of the casing halves
Precision register fits, adjustment of rotor assembly in the casing is not needed
Bearings, bearing nuts, bearing isolators, mechanical seal, shaft seal sleeves are replaceable without removing the upper casing
Shaft sealing
Standard SMD:
Single mechanical seal
Configured SMD
Single mechanical seal
Gland packing available as an option
Other mechanical seal configurations available upon request

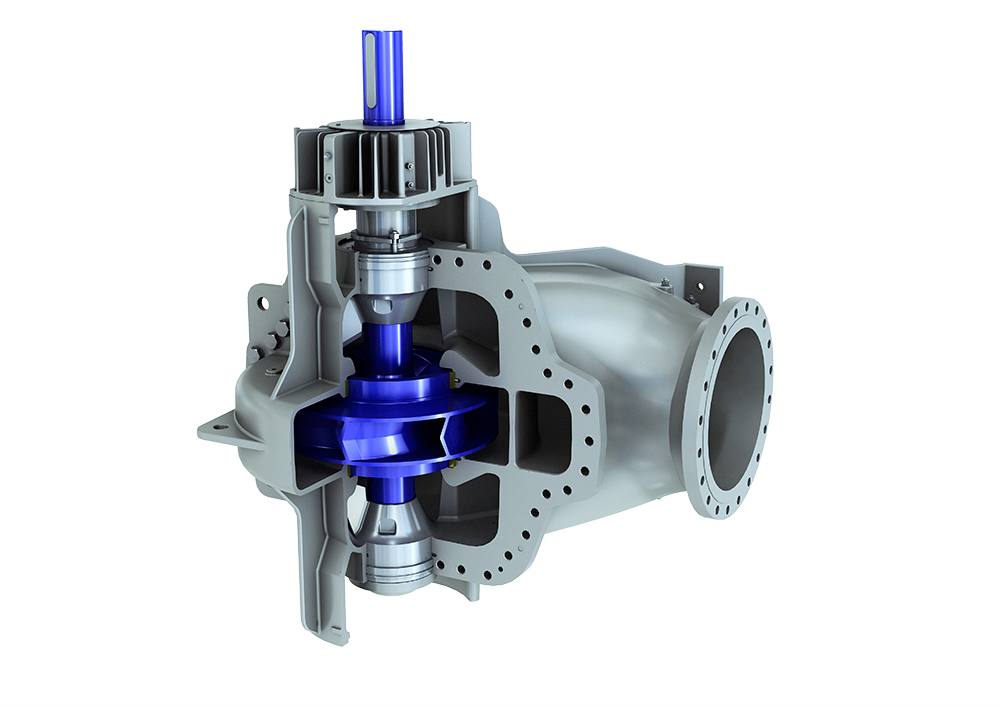

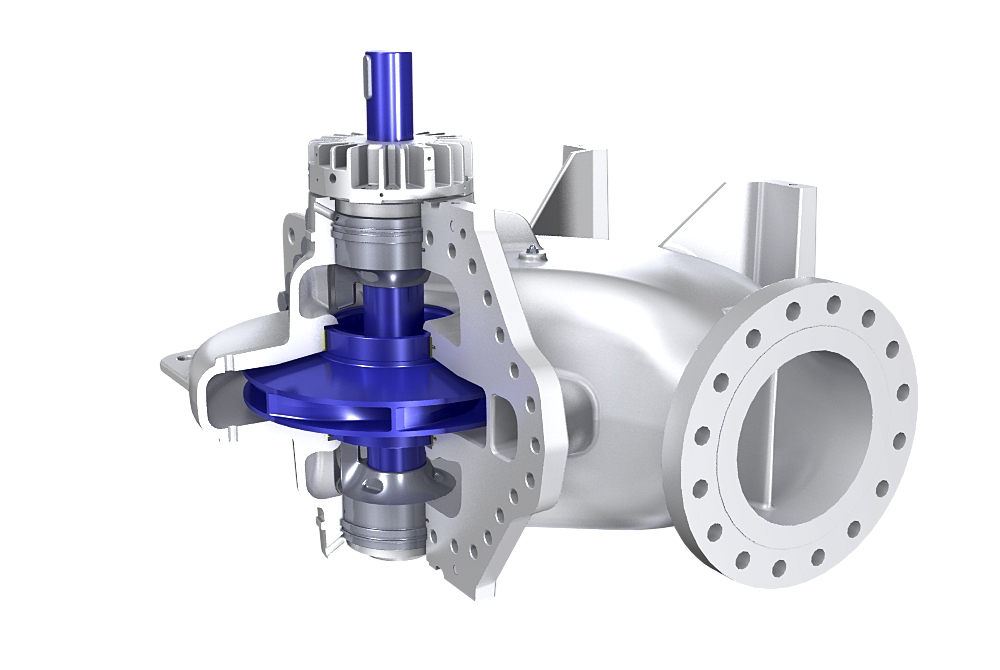

Vertical arrangement
With grease lubricated thrust bearing at the drive end and product lubricated proven design bearing at the non-drive end
Interchangeable casing with the horizontal arrangement

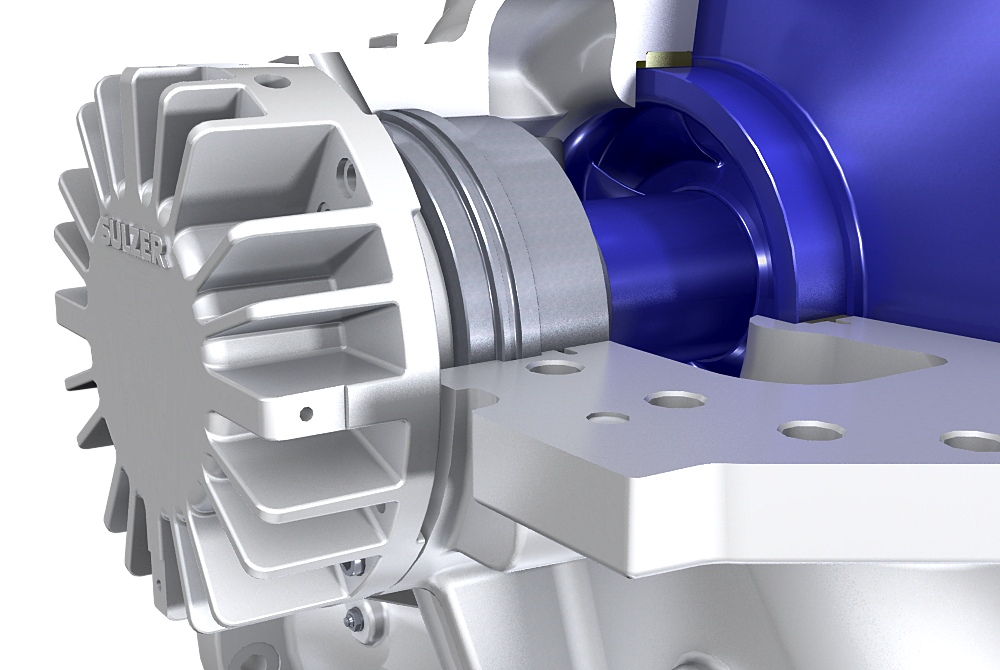

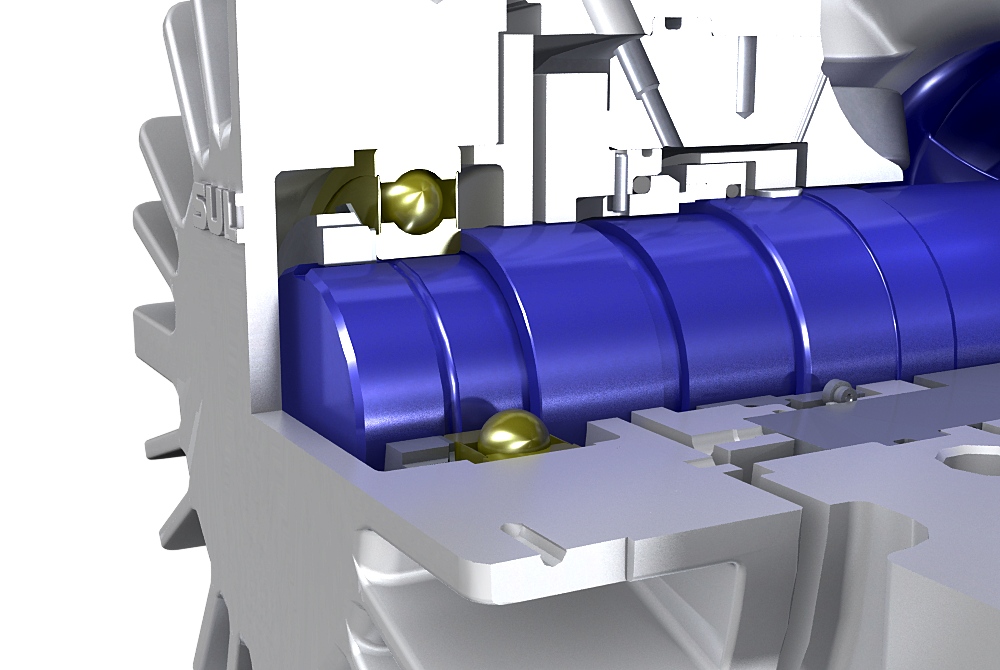

Bearings
Cooling fan in thrust bearing for heavy duty applications such as high speed, high ambient temperature, provides effective cooling without need of cooling water
Connection for temperature and vibration monitoring instruments

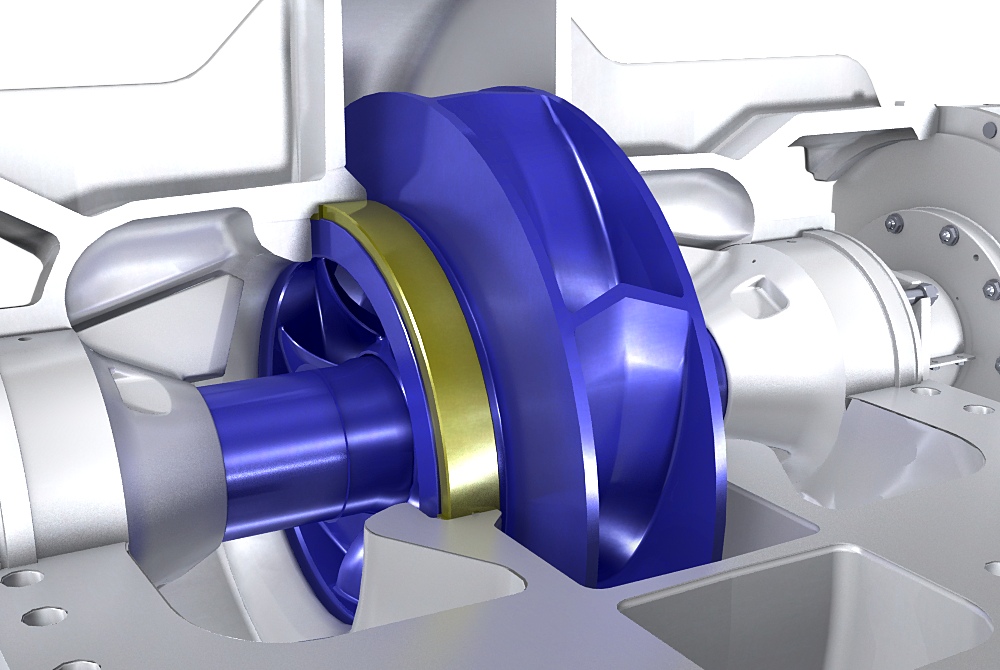

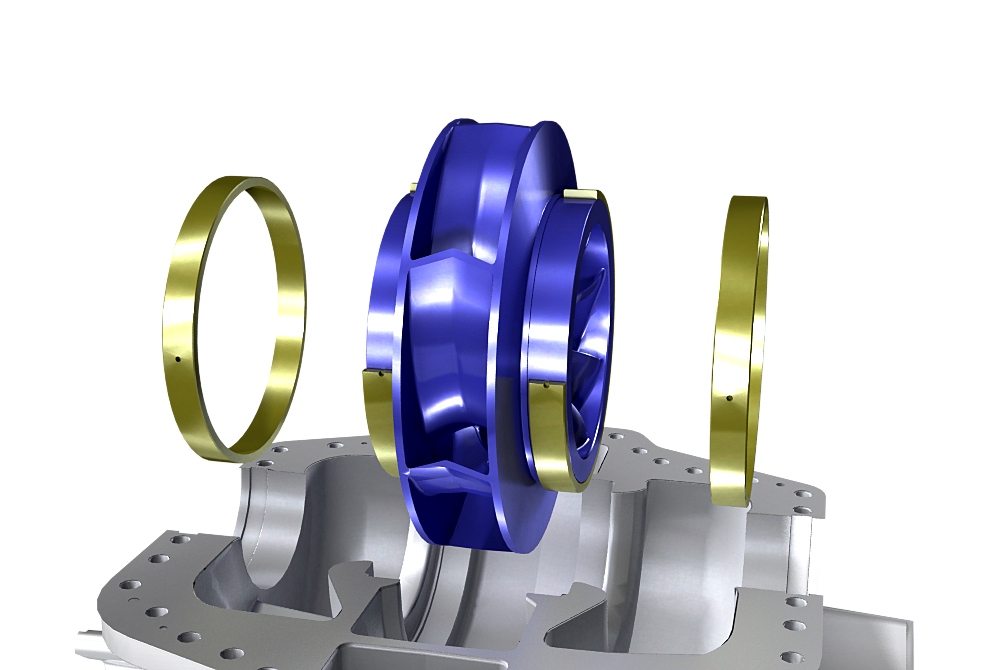

Impeller wear ring
Shrink fit and axially secured
Offers additional impeller protection
Reduced maintenance cost in heavy duty applications

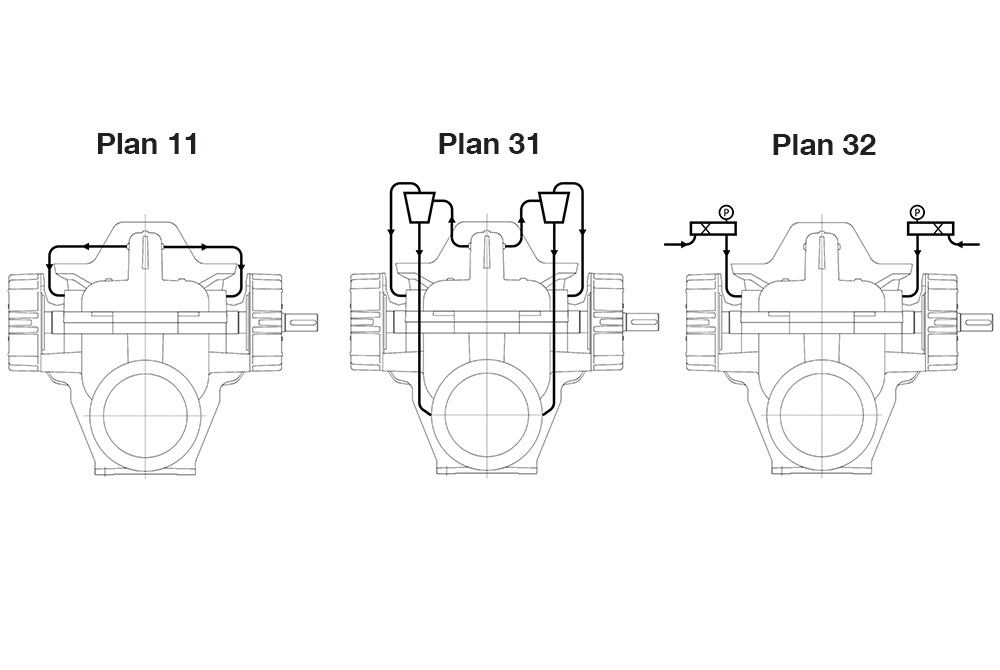

Seal plan options
Plan 11 as standard:
Seal flush from pump discharge through orifice. Default single seal flush plan.
Plan 31 as optional:
Seal flush from pump discharge through cyclone separator. Centrifuged solids are returned to pump suction
Double volute for all sizes with innovative cutwater for minimum radial load pulses
Multiple hydraulics per volute optimized by Computational Fluid Dynamics (CFD)
360° bearing bracket with grease or oil lubricated bearings for 100 000 bearings life time
Finned bearing bracket equipped with maintenance-free bearing isolators; fan cooling option for optimum bearing performance
Dry shaft design
Optional features
Bearings
Cooling fan in thrust bearing for heavy duty applications such as high speed, high ambient temperature, provides effective cooling without need of cooling water
Connection for temperature and vibration monitoring instruments
Impeller wear ring
Shrink fit and axially secured
Offers additional impeller protection
Reduced maintenance cost in heavy duty applications
Seal plan options
Plan 11 as standard, with seal plans 31 and 32, with cyclon separator or with external flushing source

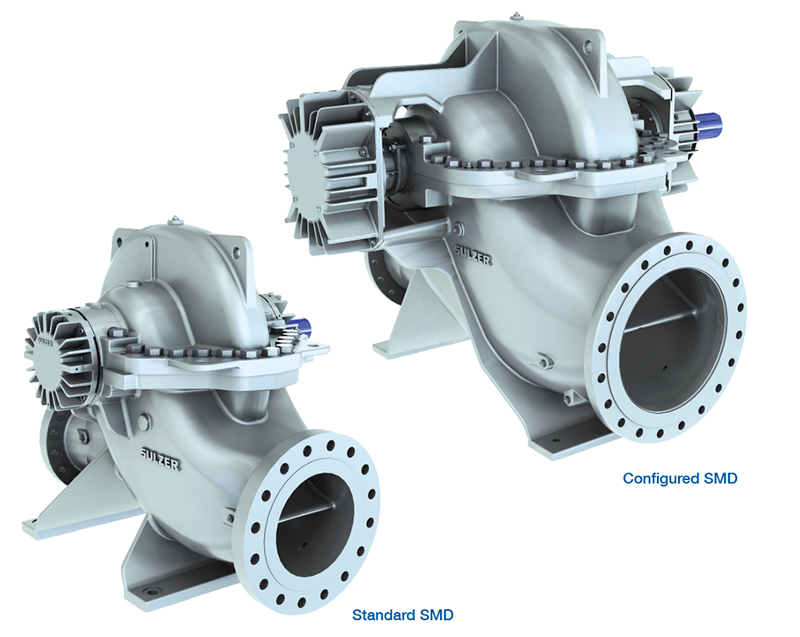

To meet the demands of the individual applications, the SMD benefits from a best-in-class hydraulic design that is combined with two specific mechanical envelopes:
Standard SMD, focused on municipal water treatment, supply and distribution where typically a higher level of standardization is required, allowing the most cost effective solutions and shortest lead times.
Configured SMD combines standardization and modularization to offer a number of configurable options to meet the most common requirements of the water abstraction, transport and desalination industries.
SMD axially split casing double suction pump - standard and configured versions
Global climate changes are affecting agriculture around the world, with some areas receiving increased rainfall, while others are experiencing a marked drop. Farmers in those drier regions are compensating for the change by installing irrigation systems, often on an extensive scale. However, large irrigation schemes often require big pumps, driving up energy costs and increasing agriculture-related carbon emissions. Both new and existing installations can benefit from engineering expertise to ensure pumping systems deliver optimum performance and minimized running costs.
Making clean, safe drinking water widely available is one of human society’s greatest priorities. 90% of the world’s population currently has access to at least a basic source of potable water, and 71% of people enjoy a managed supply of clean water to their homes. With the aim to further increase availability while controlling costs, utilities are continually investing to expand, upgrade and improve their networks, operations and maintenance processes.

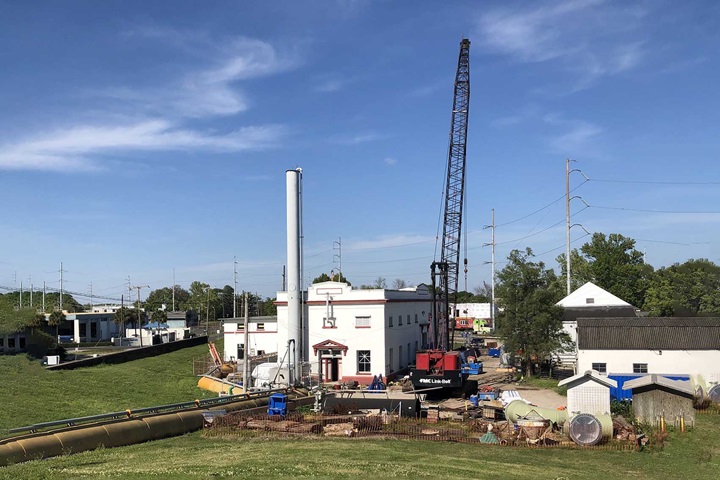

Finding just the right pump for an application can be quite a challenge, especially when the building presents several constraints and there is an unusual electrical supply. Sulzer took on this challenge in New Orleans and updated a near antique installation with the latest in pumping efficiency and reliability.
Wherever fluids are pumped, mixed, controlled or applied, we are there. See how our solutions create value for customers and learn how we can make your pumping and mixing processes more efficient and profitable, safeguarding your production and ensuring lasting reliability.
Cooling water pumps for biomass firing applications are typically horizontal axially split or end suction type. Vertical turbine type pumps are also available when required.
Cooling water pumps (CWP) provide the fresh water to cool the exhaust steam in the condenser and pump it back to the wet cooling tower or the outlet of open cooling system. The major characteristic of the CWP is their high flow. In medium to large size gas-fired combined-cycle power plants, the CWP are vertical column type. In small power plants, the CWP could also be horizontal axially split type.
Sulzer offers a variety of cooling water pumps, all made to provide your processes with the optimum temperatures for your processes. Installed in a water cooled condenser, the pumps will be active for your specific process.
Cooling water pumps (CWP) provide fresh water to cool the exhaust steam in the condenser and pump it back to the wet cooling tower or the outlet of open cooling system. The major characteristic of the CWP is their high flow. In medium to large size coal- and oil-fired power plants, the CWP are vertical column type. In small coal and oil captive power plants, the CWP could also be horizontal axially split type.
Cooling water pumps (CWP) provide fresh water to cool the exhaust steam in the condenser and pump it back to the wet cooling tower or the outlet of open cooling system. The major characteristic of the CWP is their high flow. CWP are vertical column type. In small plants, they can be horizontal axially split type.
We provide pumps for the water supply for gravity and pressurized irrigation systems. For these applications, we offer vertical and horizontal pumps that are especially constructed to highly challenging pumping and energy efficiency requirements.

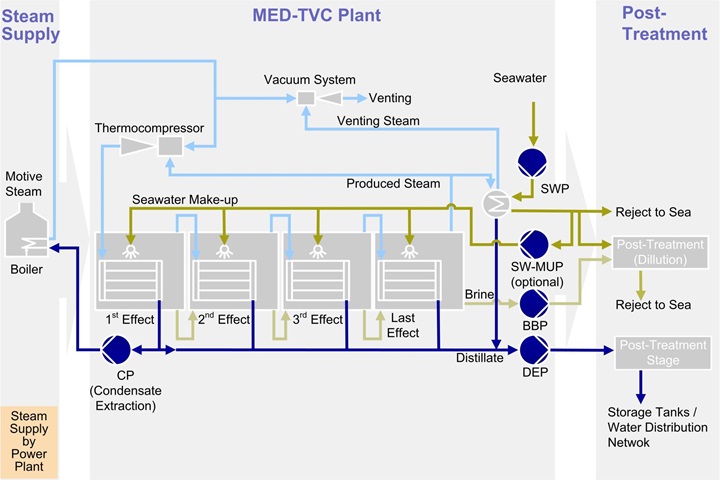

Multi Effect Distillation (MED) process is based on iterative evaporation-condensation process in several stages under vacuum conditions, using residual steam from adjacent power plant as heating media for evaporation.
Getting drinking water to all parts of a distribution network involves many challenges along the way. From the water treatment plant through pumping stations and beyond, Sulzer pumps lift and move the drinking water to bring it to its destination at sufficient flow and pressure.
When planning new water treatment plants or upgrading existing ones, operating costs are as important as investment costs. Sulzer’s innovative pumps, mixers and compressors combine reliable treatment performance with superior energy efficiency.

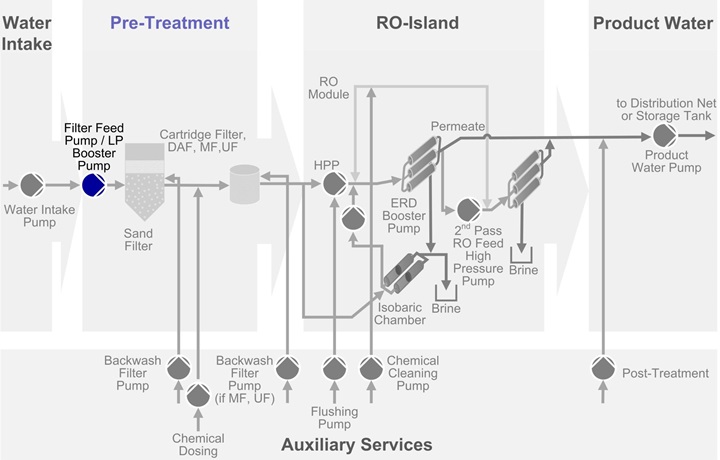

Before reaching the RO Island, where specifically the desalination process will take place, raw water needs to be treated to ensure the required quality of the raw water to avoid fouling the RO membranes.
