Main benefits
  • Highest possible efficiency gives energy savings
  • Low Net Positive Suction Head Required (NPSHR) value
  • Durable solution with high quality materials gives long life span
Main applications
  • Municipal water supply and distribution
  • Domestic water supply
  • Cooling water transport
  • Hot water applications
  • Fire fighting
  • Food, chemical and process industry
  • Irrigation

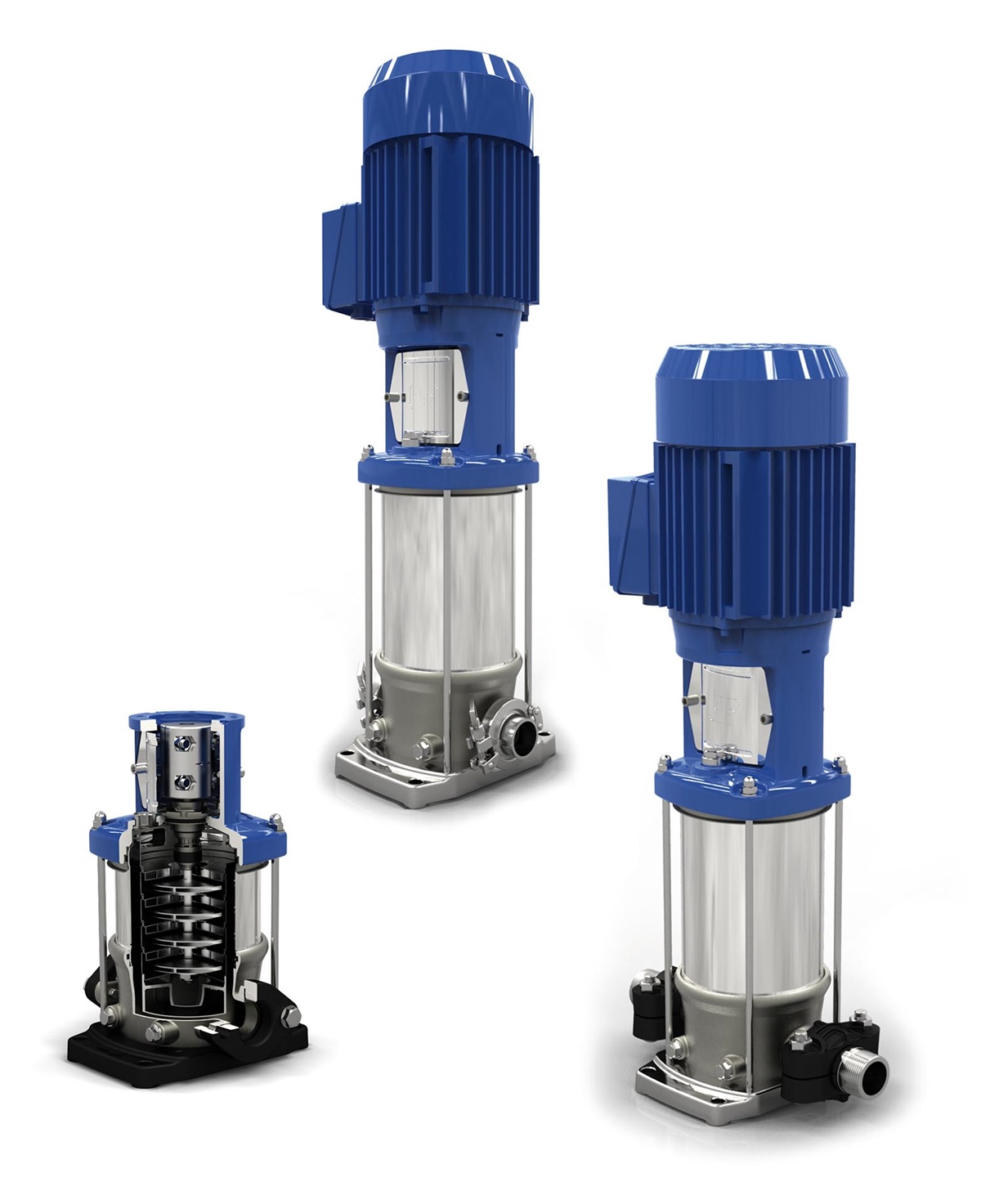

VMS vertical multistage pump range
VMS vertical multistage pumps

Main design features
  • Modular construction with wide range of options
  • Ecodesign
  • Noice reduction with optimized pump’s flow profile and special design of motor cooling fan
  • Maintenance-free electric motor

The stainless steel base guarantees the conservation of water quality and together with the modular construction that makes it possible to modify the pump for your specific application, we can offer you a reliable and cost-effective solution.

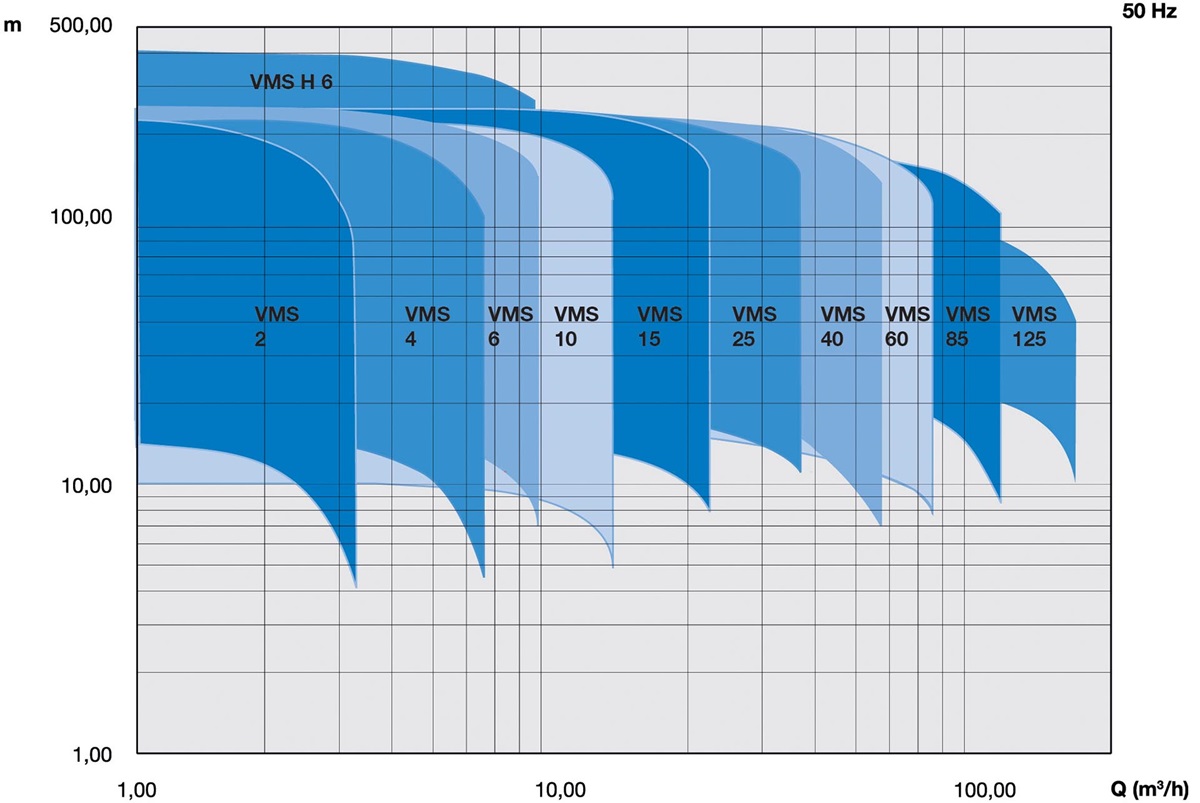

Key characteristics
Capacities Up to 162m3/h / 850 USgpm
Heads Up to 400 m / 1,350 ft
Pressures Up to 40 bar / 580 psi
Temperatures Up to 140°C / 284°F
Discharge sizes Up to 125 mm impeller diameter / 5 inches
Case studies
  • Tapping into pump engineering expertise
    Making clean, safe drinking water widely available is one of human society’s greatest priorities. 90% of the world’s population currently has access to at least a basic source of potable water, and 71% of people enjoy a managed supply of clean water to their homes. With the aim to further increase availability while controlling costs, utilities are continually investing to expand, upgrade and improve their networks, operations and maintenance processes.

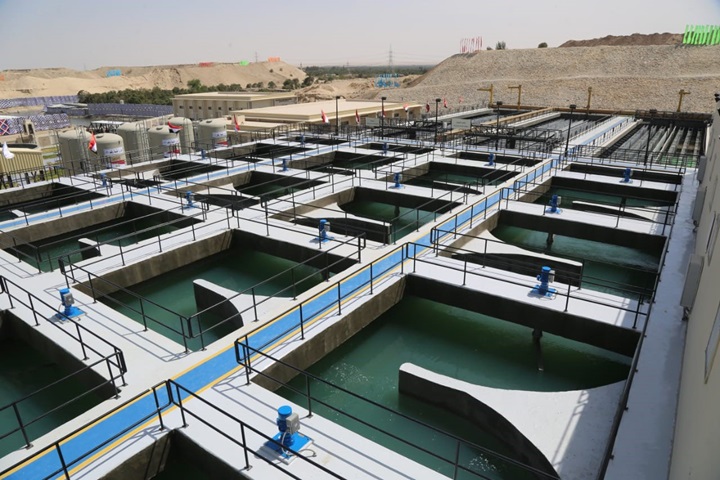

  • Greening the desert
    The plant, which was officially inaugurated by the country’s president Abdel Fattah El Sisi in April 2020, will produce enough clean water to irrigate 70’000 acres (283 square kilometers) of agricultural land.

  • Case studies
    Wherever fluids are pumped, mixed, controlled or applied, we are there. See how our solutions create value for customers and learn how we can make your pumping and mixing processes more efficient and profitable, safeguarding your production and ensuring lasting reliability.
Applications
  • Municipal clean water supply and distribution
    Getting drinking water to all parts of a distribution network involves many challenges along the way. From the water treatment plant through pumping stations and beyond, Sulzer pumps lift and move the drinking water to bring it to its destination at sufficient flow and pressure.

  • Municipal clean water treatment
    When planning new water treatment plants or upgrading existing ones, operating costs are as important as investment costs. Sulzer’s innovative pumps, mixers and compressors combine reliable treatment performance with superior energy efficiency.
Water certificates

NSF / ANSI 61 drinking water certification

The VMS pumps are certified with the NSF /ANSI 61 certification. In the certification process, the pump has gone through a variety of testing to ensure safe pumping of drinking water.

ACS certification (FR)

The VMS pumps are certified by ACS. The certification ensures that the pump is approved for pumping potable water.

WRAS approval

The VMS pumps are approved by WRAS and thereby compliant with UK water regulations and meet the standards required when transferring clean water.

ACS, NSF and WRAS water certificates
