The challenges of the Delayed Coking unit require each piece of equipment to be designed with certain characteristics to ensure continuous reliable operation. Pumps need to meet a variety of design criteria, requiring specialized expertise and engineering to deliver the necessary durability in arduous conditions.  Column and separator applications also require robust, fouling resistant, high-performance internals.

Delayed coking process

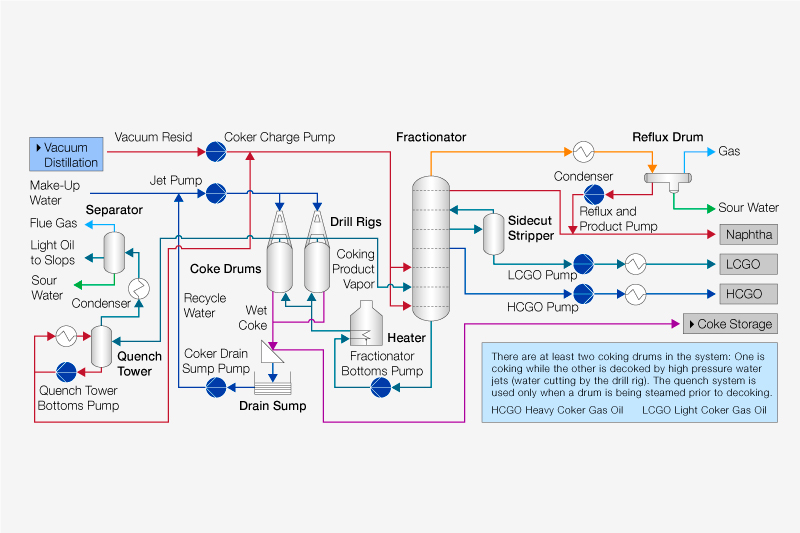

The Delayed Coker Unit uses dual coke drums to which process feed is alternated, while one drum is being filled the second drum is being cooled followed by hydraulic coke cutting & water separation for reuse.

In delayed coking, the feed is typically the residue from vacuum distillation tower and frequently includes other heavy oils. The feed is heated by a fired heater (furnace) as it is pumped in from the bottom and solidifies as it cools. Light ends flash off the top and go to the fractionation tower where they are separated into gas, gasoline, and other higher value liquid products. A solid residuum of coke is also produced and remains within the drum.

When coke drum is full, the valve switches flow to the second drum and the same process is repeated.

After cooling the first drum, water pressure is used to drill a bore hole down the middle of the solid coke. Once the bore hole is completed, rotary cutting with high pressure water is used to cut the rest of the coke from the drum. The water and coke pieces cut from the drum are dropped into a pit below the drums, where the cutting water is separated from coke and recycled.

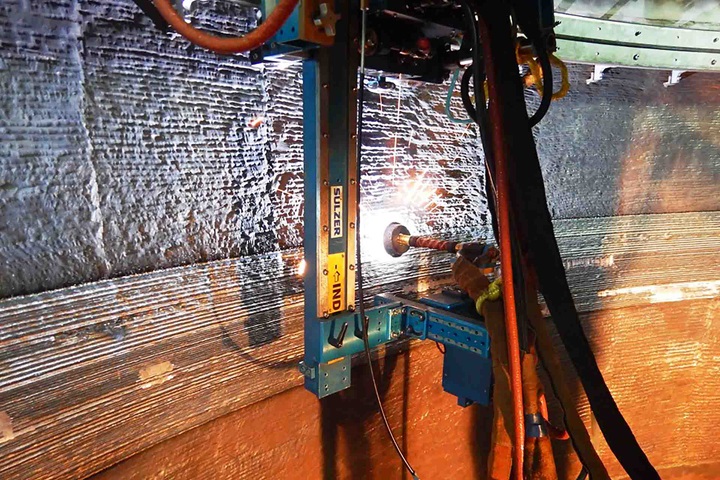

coker

Pumping solutions
  • API 610 and ISO 13709 pumps
    API 610 / ISO 13709 international standard specifies requirements for overhung, between-bearings and vertically-suspended centrifugal pumps used in petroleum, petrochemical and gas industry process services.

  • Two stage pumps
    Two-stage centrifugal pumps are used in applications where higher head is required. They ensure more reliable, high efficiency process and lower operating costs instead of serial pumping system.
Separation technology
  • Trays
    Our extensive tray portfolio ranges from single pass to multi-downcomer and from conventional to high-performance trays, including the latest technology in ultra-system limit trays. All designs are tailored to meet the exact requirements of your specific application.

  • Structured grid packings - Mellagrid, Nutter Grid, F-Grid
    Grids are developed for severe services that are susceptible to fouling, erosion, coking, and high solids content. Grids are installed in rigid modules stacked in successive layers with a fixed orientation, thus minimizing the overall pressure drop while simultaneously increasing tower efficiency.

  • Mellapak™ and MellapakPlus™
    Mellapak is the most widely used structured packing worldwide. MellapakPlus™ is the latest generation of structured packing. With the enhancement of the geometric structure of conventional Mellapak™, the pressure drop is much lower and the maximum capacity can be extended by 50% compared to Mellapak™.
