Centrifugal forces of cyclones combined with high separation efficiency of mist eliminators

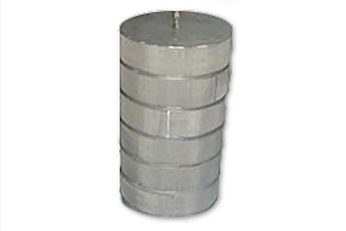

The patented Sulzer MKS Multi Cassette™ mist eliminator combines axial cyclonic and cross-flow separation technology to create an efficient, high-capacity separator.
The first application of Sulzer MKS Multi Cassette mist eliminators was in several trains of glycol contactors in Russia. The contactors were revamped from trays to Sulzer MellapakPlus and were operated at very high gas loading factors. In order to keep the glycol loss low at this high column gas throughput, the MKS Multi Cassette mist eliminators were installed in the contactor top section. The application was shown to meet measured glycol losses of < 0.1 US gallons per MMSCF of gas.
The revamp required the installation of high-capacity separators. However, the available installation height in the separator did not permit the installation of a Shell Swirltube with KnitMesh pre-conditioner without major structural modifications. The installation of a Mellachevron mist eliminator will not meet the required separation efficiency, and incidentally would also lead to considerable structural complications in the column. The customers chose Sulzer MKS Multi Cassette because it was able to reach the desired separation performance and fitted into the limited space available.
