- Simple construction to minimize dimensions and reduce investment and maintenance costs
- High-quality investment cast impellers and diffusers for improved efficiency
- Fast and easy impeller mounting
- Bearing unit can be serviced without having to disassemble the pumps
- Wide range of materials available including duplex stainless steel grades
MBN high-pressure stage casing pumps
Multi-purpose solutions for all high-pressure needs
The MBN pumps are ideal for use in high-pressure applications. They have a big variety of nozzle position options, thus providing flexibility during installation and simplifying the piping design. The thrust bearing and shaft seal can be easily exchanged without disassembling the suction casing.
- Boiler feed duties in industrial power applications up to 180° C
- Condensate service in power stations and industrial plants
- Feed pumps in desalination by reverse osmosis
- Shower water in paper mills
- High-pressure water in general industry
Main design features
- Integrated diffusers and stage casings
- Product-lubricated Non-Drive End (NDE) bearing of innovative design for better internal alignment and lubrication
- Balance drum and axial thrust bearing
- Keyless polygon shaft torque transmission for the impellers
- Shaft sealing only required in the low-pressure suction side
Key characteristics
Capacities | Up to 700 m3/h / 3,080 US gpm |
Heads | Up to 900 m / 2,950 ft |
Pressures | Up to 100 bar / 1,450 psi |
Temperatures | Up to 180°C / 355°F |
Discharge sizes | Up to 150 mm / 6 inches |
Performance range

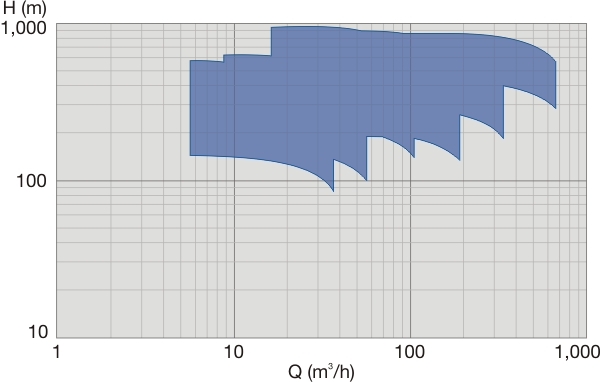

Performance range 50 Hz

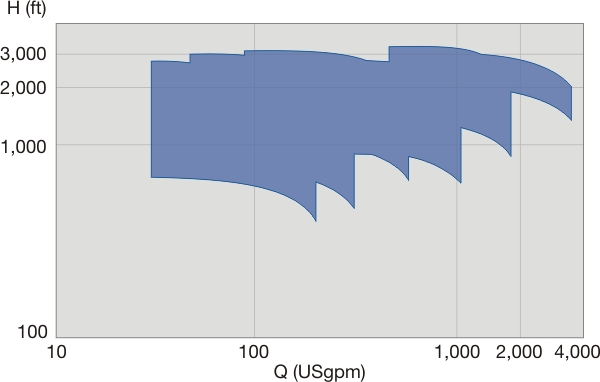

Performance range 60 Hz
